Networking & VPC Interview Guide

VPC design, subnets, security, hybrid connectivity, DNS, and private networking — the #1 SA interview topic.

6Topics

6Diagrams

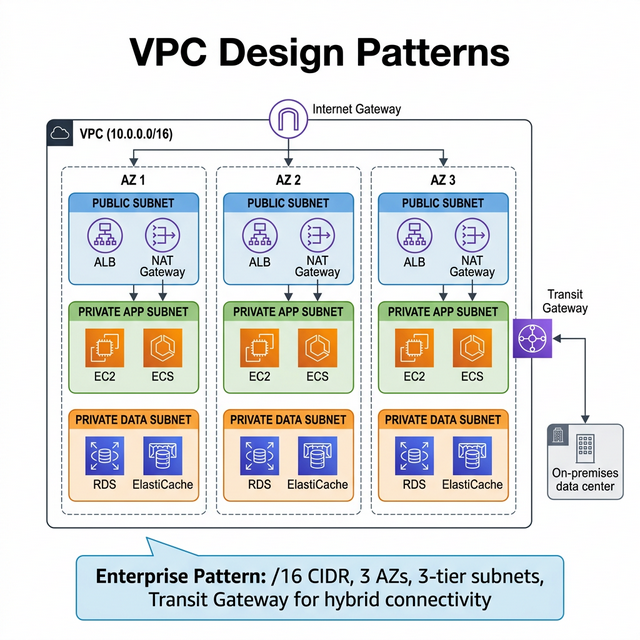

AWS VPC Enterprise Architecture Design Diagram — Networking & VPC — Enterprise Architecture Overview

Intermediate

VPC Design Patterns

VPC design is the foundation of every AWS architecture. Get this wrong, and everything else fails:

VPC CIDR Planning (Interview Must-Know)

CIDR Block	Total IPs	Usable IPs	Best For
/16	65,536	65,531	Large production VPC (recommended default)
/20	4,096	4,091	Medium workload, dev/staging
/24	256	251	Small subnet, single-purpose
/28	16	11	Smallest subnet allowed (AWS reserves 5 IPs per subnet)

AWS reserves 5 IPs per subnet: network address, VPC router (.1), DNS (.2), future use (.3), broadcast.

Enterprise VPC Architecture

Tier	Subnet Type	Contains	Internet Access
Public	Public subnet	ALB, NAT Gateway, Bastion (if any)	Direct via Internet Gateway
Private App	Private subnet	EC2, ECS, Lambda (VPC), EKS nodes	Outbound only via NAT Gateway
Private Data	Private subnet	RDS, ElastiCache, OpenSearch	No internet access (most secure)
Transit	Private subnet	Transit Gateway attachments, VPN	Routes to on-premises

Multi-Account VPC Strategy (Enterprise)

Hub-and-Spoke — Central "shared services" VPC (DNS, logging, security) connected to workload VPCs via Transit Gateway. Each team gets isolated VPCs.
Non-overlapping CIDRs — Plan CIDR blocks upfront using IPAM (VPC IP Address Manager). Overlapping CIDRs = impossible to peer or route.
AWS Organizations + RAM — Share subnets across accounts using Resource Access Manager. One networking team manages VPCs, app teams deploy into shared subnets.

🎯 Key Takeaway

Interview tip: Say: "I design VPCs with a /16 CIDR, 3 tiers of subnets across 3 AZs (public, private-app, private-data), non-overlapping ranges planned with IPAM. For multi-account, I use Transit Gateway as a hub with spoke VPCs per workload, shared via RAM. This gives network isolation with centralized control."

Beginner

Subnets & Route Tables

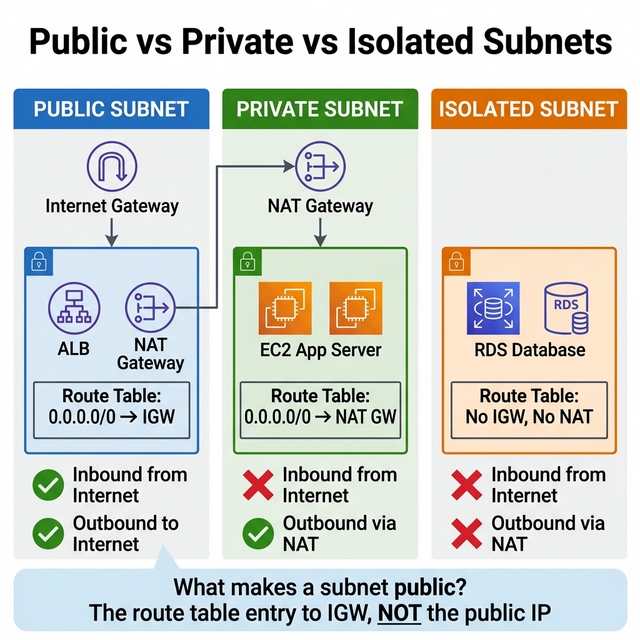

Public vs Private vs Isolated Subnets Diagram

Bad Answer

"A public subnet has a public IP and a private subnet doesn't."

Correct Answer

A subnet is public if its route table has a route to an Internet Gateway (IGW). A subnet is private if it does NOT have a route to an IGW. The presence of a public IP is separate — it enables the instance to communicate via the IGW, but without the IGW route, traffic goes nowhere.

Public vs Private vs Isolated Subnets

Subnet Type	Route to IGW	Outbound Internet	Inbound from Internet	Use Case
Public	✅ Yes (0.0.0.0/0 → IGW)	✅ Yes	✅ Yes (if SG allows)	ALB, NAT Gateway, bastion
Private	❌ No IGW route	✅ Via NAT Gateway	❌ No	Application servers, containers
Isolated	❌ No IGW route	❌ No (no NAT)	❌ No	Databases, sensitive data

NAT Gateway — Key Details

Cost: $0.045/hr + $0.045/GB processed (~$32/month just for running)
Deploy per AZ — For HA, place one NAT Gateway in each AZ's public subnet
Alternative: NAT instances (cheaper for dev, but you manage patching/HA)
Cost savings: Use VPC endpoints for S3/DynamoDB to avoid NAT Gateway data processing charges

🎯 Key Takeaway

Interview tip: "What makes a subnet public is the route table entry to the IGW, not the IP. I always deploy NAT Gateways per AZ for HA, and use S3/DynamoDB gateway endpoints to reduce NAT costs — which can be the #1 surprise cost in AWS."

Intermediate

Security Groups vs NACLs

This is asked in almost every SA interview — know this table cold:

Feature	Security Group (SG)	Network ACL (NACL)
Level	Instance / ENI level	Subnet level
State	Stateful (return traffic auto-allowed)	Stateless (must allow return traffic explicitly)
Rules	Allow rules only	Allow AND Deny rules
Evaluation	All rules evaluated together	Rules evaluated in order (lowest number first)
Default	Deny all inbound, allow all outbound	Allow all inbound and outbound
Reference SGs	✅ Can reference other SGs by ID	❌ IP/CIDR ranges only
Use Case	Primary defense — control app-level access	Subnet-wide deny rules, compliance requirements

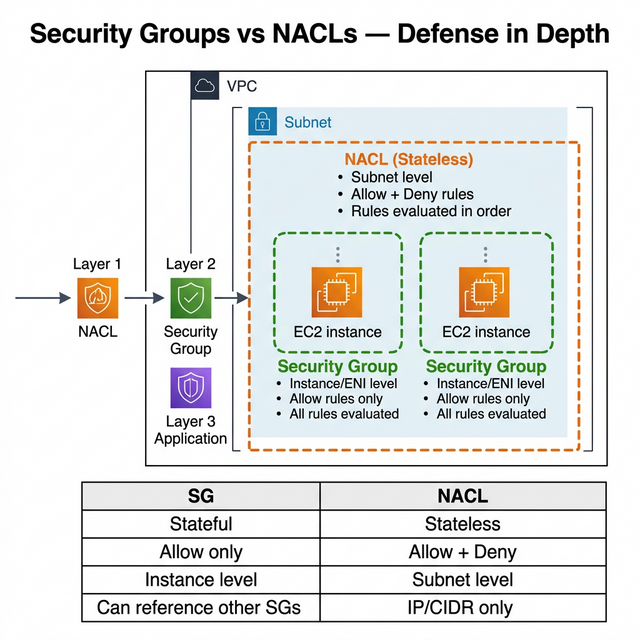

Defense in Depth Pattern

Layer 1 — NACL: Block known bad IP ranges, deny specific ports at the subnet boundary
Layer 2 — SG: Allow only required ports from specific sources (other SGs, CIDRs)
Layer 3 — Application: Validate auth tokens, rate limiting in the app

SG Best Practice: Reference Other SGs

Instead of hardcoding IPs, reference security groups: "Allow inbound port 3306 from sg-webapp". This way, any instance in the webapp SG can reach the database — no IP management needed. This is a key architectural pattern interviewers look for.

🎯 Key Takeaway

Interview tip: "Security Groups are stateful and my primary defense — I reference other SGs to avoid IP management. NACLs are stateless and subnet-wide — I use them for deny rules and compliance. Together they provide defense in depth. The most common mistake is relying on NACLs instead of SGs."

Advanced

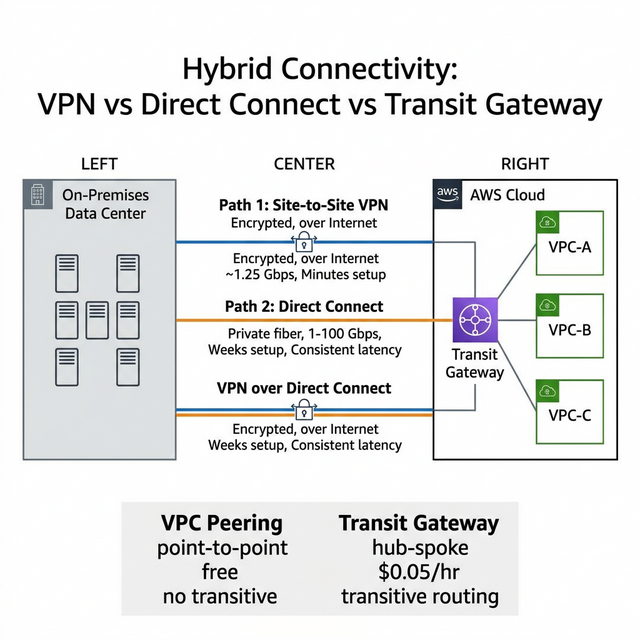

VPN vs Direct Connect vs Transit Gateway

Hybrid connectivity is asked in every enterprise SA interview:

Feature	Site-to-Site VPN	Direct Connect (DX)	Transit Gateway (TGW)
Connection	Encrypted over public internet	Dedicated private fiber	Hub that connects VPCs, VPNs, DX
Bandwidth	Up to 1.25 Gbps per tunnel	1 Gbps, 10 Gbps, or 100 Gbps	Up to 50 Gbps per attachment
Latency	Variable (internet-dependent)	Consistent, low latency	Adds ~1ms hop
Setup Time	Minutes (software-defined)	Weeks to months (physical fiber)	Minutes (attach existing connections)
Redundancy	2 tunnels per connection	Need 2 DX connections at different locations	Built-in HA across AZs
Cost	~$36/month per connection	$0.30/GB + port fee ($220-$14,400/mo)	$0.05/hr + data processing
Encryption	✅ IPSec built-in	❌ Not encrypted (add VPN over DX for encryption)	Supports VPN attachments

Decision Framework

Quick POC / backup → Site-to-Site VPN (minutes to set up)
Production hybrid >1 Gbps → Direct Connect with VPN backup
Multiple VPCs + on-prem → Transit Gateway as hub (avoid VPC peering mesh)
Encryption required on DX → VPN over Direct Connect (IPSec tunnel over private link)

VPC Peering vs Transit Gateway

Aspect	VPC Peering	Transit Gateway
Topology	Point-to-point (1:1)	Hub-and-spoke (1:many)
Transitive Routing	❌ Not supported	✅ Supported
Scale	Max 125 peering connections	5,000 attachments
Cost	Free (pay for data transfer)	$0.05/hr per attachment + data
Use When	2-3 VPCs, simple setup	>3 VPCs, on-prem, centralized routing

🎯 Key Takeaway

Interview tip: "For enterprise hybrid, I'd use Direct Connect for primary connectivity (consistent latency, high bandwidth) with Site-to-Site VPN as backup. Transit Gateway acts as the central hub connecting all VPCs, the DX, and VPN. For encryption over DX, I'd run a VPN tunnel over the Direct Connect connection."

Intermediate

Route 53 Routing Policies

Route 53 routing policies — know when to use each one:

Policy	How It Works	Use Case	Health Checks
Simple	Returns one or more IPs randomly	Single resource, no special routing needed	❌ No
Weighted	Distributes traffic by percentage (e.g., 70/30)	Blue/green deployment, A/B testing, gradual migration	✅ Optional
Latency-Based	Routes to the region with lowest latency	Multi-region apps — users get fastest response	✅ Yes
Failover	Primary/secondary — switches on health check failure	Active-passive DR, S3 static site as fallback	✅ Required
Geolocation	Routes based on user's geographic location	Content localization, regulatory compliance (EU data stays in EU)	✅ Optional
Geoproximity	Routes based on distance + bias values	Shift traffic between regions using bias	✅ Optional
Multi-Value	Returns up to 8 healthy records randomly	Client-side load balancing across multiple IPs	✅ Yes

Route 53 + Health Checks Architecture

Pattern: Failover routing with health checks → Primary region (us-east-1) serves traffic. If health check fails, Route 53 switches to secondary region (us-west-2) automatically. Combine with latency-based routing for multi-region active-active.

🎯 Key Takeaway

Interview tip: "For multi-region, I'd combine latency-based routing (users get the nearest region) with failover (unhealthy regions are automatically bypassed). For compliance (e.g., EU data residency), geolocation routing ensures EU users always hit eu-west-1. For gradual migrations, weighted routing lets me shift 10% → 50% → 100% to the new stack."

Intermediate

VPC Endpoints & PrivateLink

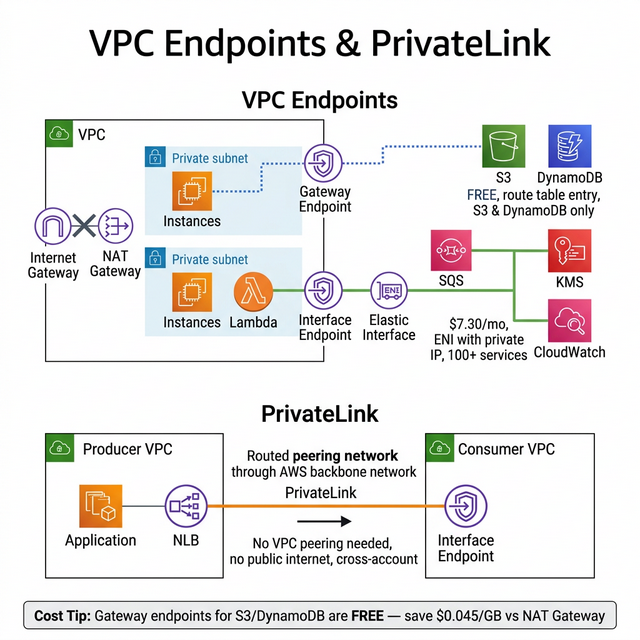

VPC Endpoints and PrivateLink Architecture Diagram

VPC Endpoints keep traffic private (never leaves the AWS network) and reduce NAT Gateway costs:

Type	How It Works	Supported Services	Cost
Gateway Endpoint	Route table entry pointing to AWS service	S3, DynamoDB only	✅ Free
Interface Endpoint	ENI with private IP in your subnet (powered by PrivateLink)	100+ AWS services (CloudWatch, SQS, SNS, KMS, etc.)	~$7.30/month + $0.01/GB
Gateway Load Balancer Endpoint	Routes traffic through third-party appliances	Firewalls, IDS/IPS (Palo Alto, Fortinet)	$0.0035/GB processed

PrivateLink — Expose Services Privately

What: Share your service (behind NLB) privately with other VPCs or AWS accounts — no VPC peering, no public internet
How: Producer creates NLB + VPC Endpoint Service. Consumer creates Interface Endpoint. Traffic flows over AWS backbone.
Use case: SaaS providers sharing API with customers, cross-account microservice communication

Cost Savings Strategy

NAT Gateway costs $0.045/GB. If your Lambda/ECS in private subnets talk to S3 or DynamoDB frequently, a free Gateway Endpoint saves potentially hundreds of dollars/month. For other AWS services, Interface Endpoints cost ~$7/month but eliminate the $0.045/GB NAT charge.

🎯 Key Takeaway

Interview tip: "I always create Gateway Endpoints for S3 and DynamoDB — they're free and eliminate NAT Gateway data processing charges. For services like SQS, KMS, and CloudWatch, I add Interface Endpoints. For cross-account service sharing, I use PrivateLink so traffic never crosses the public internet."

Advanced

Interview Questions — Networking & VPC

Networking questions separate strong architects from the rest. These test real VPC design thinking.

Design a VPC architecture for a company with 500 microservices across 3 environments (dev, staging, prod). How would you plan CIDR blocks to avoid conflicts and allow peering?

Answer Guide

Use non-overlapping CIDRs (e.g., 10.0.0.0/16 prod, 10.1.0.0/16 staging, 10.2.0.0/16 dev). Consider Transit Gateway for hub-and-spoke vs full mesh peering. Plan for IP exhaustion.
A Lambda function in a private subnet needs to call the S3 API. It's currently routing through a NAT Gateway, costing $5,000/month in data transfer. How do you fix this?

Answer Guide

S3 Gateway Endpoint — free, no data processing charges. This is the #1 hidden cost savings in AWS networking. Also consider Interface Endpoints for DynamoDB and other services.
Explain the difference between Security Groups and NACLs. A junior engineer put an allow rule in a Security Group and a deny rule in the NACL for the same port. Which wins?

Answer Guide

NACLs are evaluated first (subnet level). If NACL denies, traffic never reaches the SG. NACLs are stateless (need inbound + outbound rules). SGs are stateful (return traffic auto-allowed).
Your company needs a reliable, low-latency connection between on-premises and AWS for a real-time trading application. VPN latency is too high. What do you recommend and how do you design for redundancy?

Answer Guide

AWS Direct Connect with two connections at different DX locations for resilience. Add VPN as backup over the internet. Discuss BGP failover, LAG groups, and the 1-3 month provisioning time.
An EC2 instance in a private subnet can't reach the internet. Walk me through your troubleshooting steps.

Answer Guide

Check route table (0.0.0.0/0 → NAT GW?), NAT Gateway in public subnet with IGW route, Security Group outbound rules, NACL rules (both inbound and outbound — it's stateless), and DNS resolution (VPC DNS settings).
You need to set up DNS for a hybrid environment where on-premises applications need to resolve AWS private hosted zone records, and AWS services need to resolve on-premises DNS. Design the solution.

Answer Guide

Route 53 Resolver with Inbound Endpoints (on-prem → AWS) and Outbound Endpoints (AWS → on-prem). Resolver rules forward specific domains. Discuss conditional forwarding.
Your application runs in 3 AZs. You notice that inter-AZ data transfer is costing $10,000/month. What architectural changes would you consider to reduce this?

Answer Guide

Use AZ-aware routing (ALB with AZ affinity), deploy caches per AZ, consider same-AZ read replicas. Trade-off: reducing cross-AZ traffic can reduce availability if an AZ goes down.
When would you choose Transit Gateway over VPC Peering? A team has 15 VPCs that all need to communicate. They've set up 105 peering connections. What's the problem?

Answer Guide

VPC Peering isn't transitive — 15 VPCs need n(n-1)/2 = 105 connections. Transit Gateway provides hub-and-spoke with transitive routing. Discuss cost trade-off: TGW charges per attachment + per GB.
What is the difference between a Gateway VPC Endpoint and an Interface VPC Endpoint? When would you use each?

Answer Guide

Gateway endpoints (S3, DynamoDB only) — free, route table entry. Interface endpoints (all other services) — ENI in subnet, cost per hour + per GB. Gateway is always preferred when available.
Design the Route 53 routing policy for a global application deployed in us-east-1 and eu-west-1. Users should hit the closest region, but if a region goes down, all traffic should failover automatically.

Answer Guide

Latency-based routing with health checks. When a health check fails, Route 53 removes that region. Discuss TTL implications, health check intervals (10s vs 30s), and fast failover vs DNS caching.

Preparation Strategy

Networking questions often start simple but go deep quickly. Practice drawing VPC diagrams on a whiteboard — subnets, route tables, gateways, and security boundaries. The ability to diagram while explaining shows confidence.
